How LangChain turns a model call into a production LLM app
A visual guide to LangChain messages, structured output, retrieval, tool loops, memory, middleware, tracing, and evaluation.
The whole story in 5 lines
LangChain grows a model call into an application by surrounding generation with context, actions, state, controls, and evidence.
- Messages shape the request, while a schema turns probabilistic text into validated application data.
- Retrieval selects relevant documents and adds them to the context before the model writes its answer.
- An agent lets the model request tools, but trusted application code owns execution and returns results.
- A checkpointer stores thread state so one conversation can resume without leaking into another.
- Middleware controls risky actions, while traces and evaluations turn behavior into inspectable evidence.

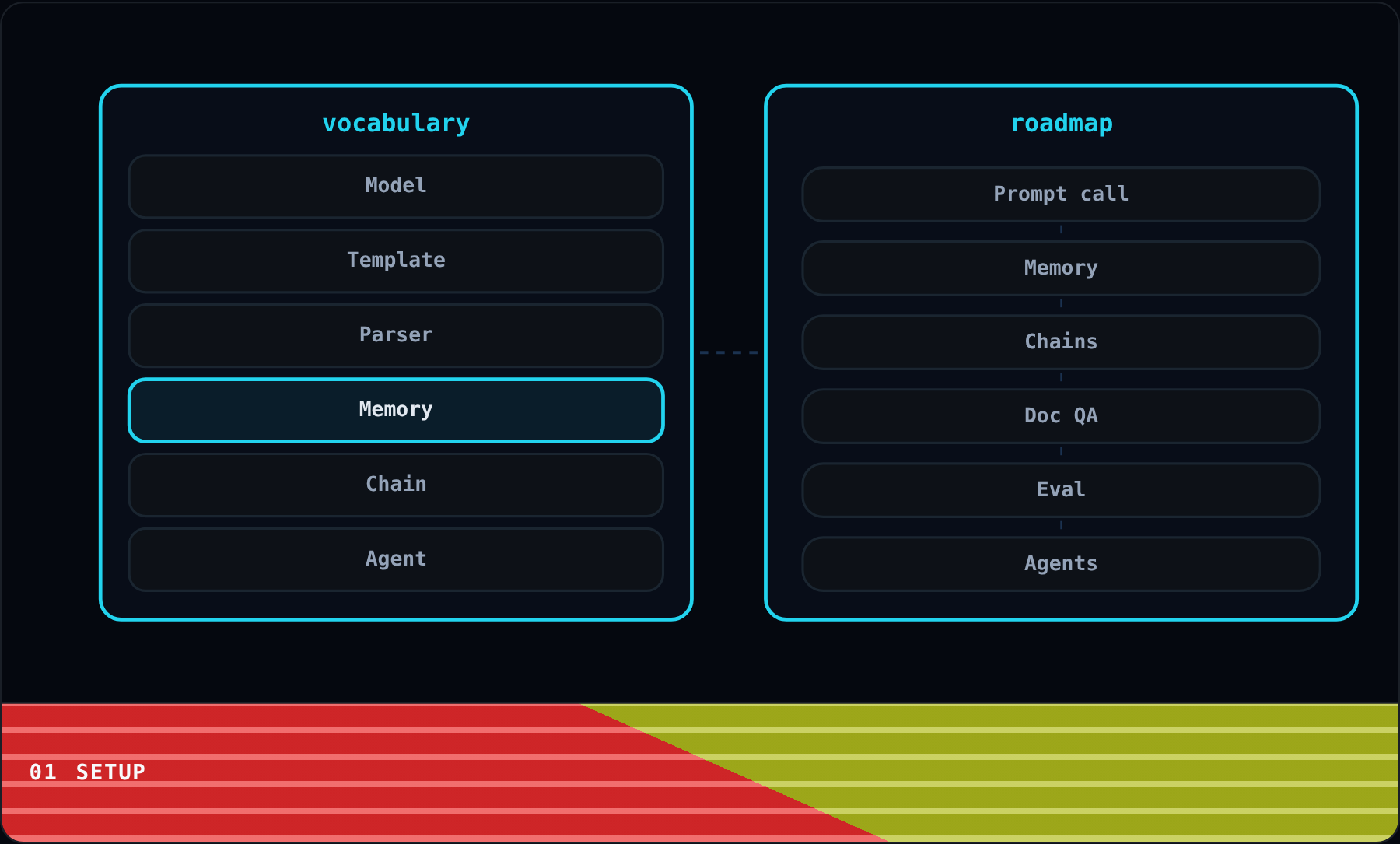

Setup
A customer asks whether hiking boots can be returned after forty five days. A raw model can write a confident reply, but confidence does not prove that it found the correct policy or order.
Messages carry instructions, user input, and later tool results. A retriever searches application knowledge for relevant documents, which gives the model evidence that was not inside the original question.
A tool is a function the model may request, while trusted code performs the real action. State stores the conversation data that later steps need, without pretending the model remembers by itself.
We will shape one call, retrieve policy evidence, run an order lookup, resume the conversation, and then add operational controls. Each stage keeps the same customer request so every new layer earns its place.
The full journey is now visible around one concrete problem. Stable ideas will stay separate from current JavaScript names such as createAgent and thread ID. Now let us start with the contract around one model call.

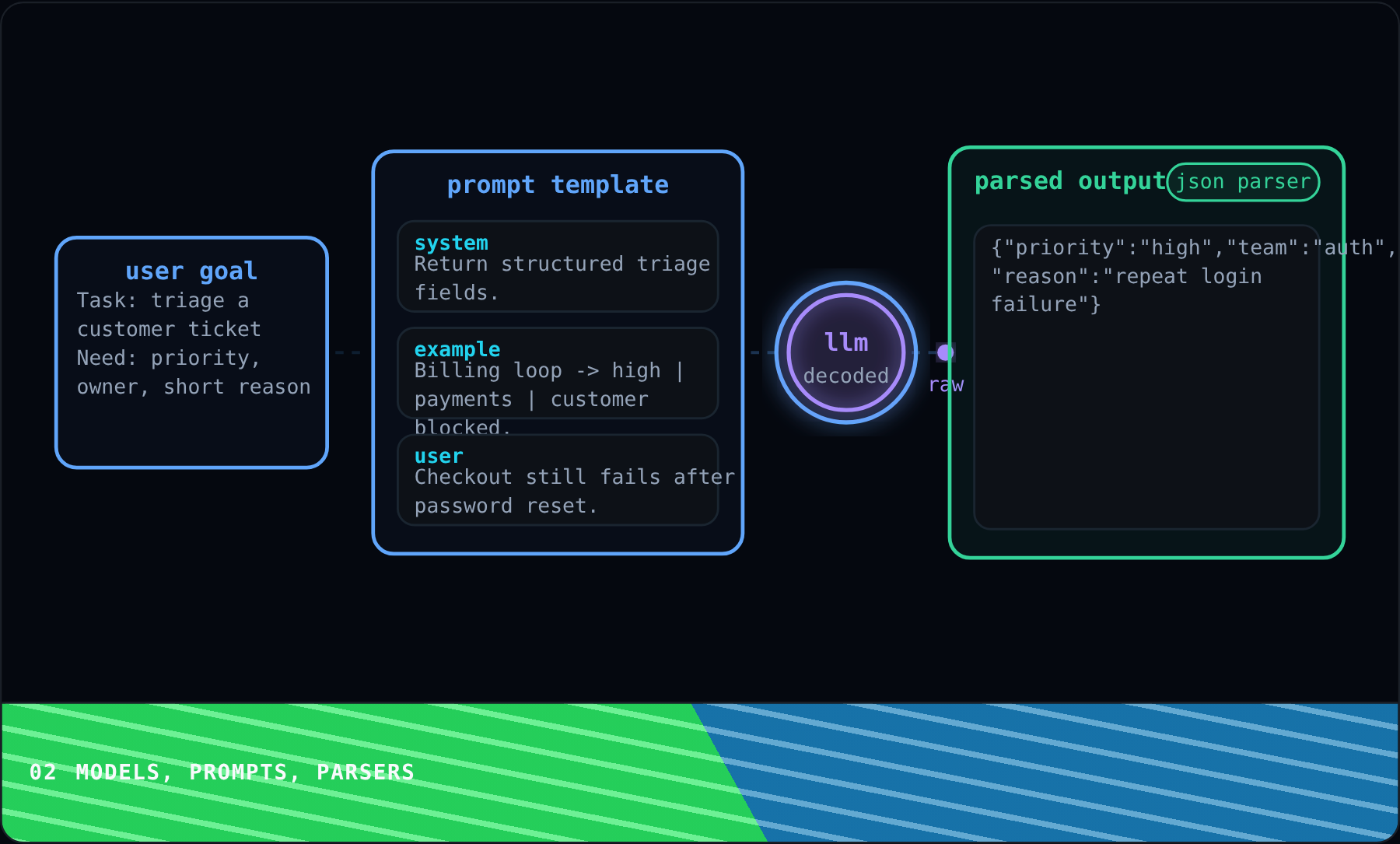

The Model Call Contract
The setup showed why a fluent reply is not enough. We begin by placing behavior rules in a system message and the customer question in a user message, so their roles remain explicit.
LangChain sends those messages through a standard chat model interface. The stable idea is provider abstraction. The current JavaScript API can invoke a model directly, which keeps simple tasks outside an agent loop.
The model returns a natural language answer that sounds organized, but downstream code expects eligible, deadline, and reason fields. Which boundary should reject a response that misses one field?
The schema closes around the response and exposes three validated fields. Current LangChain models support structured output through schemas such as Zod, although provider strategies and exact method names can vary by version.
The first contract is complete: role-tagged input enters one model interface, and validated data leaves it. The answer still depends only on supplied context, so next we will retrieve the policy evidence it needs.

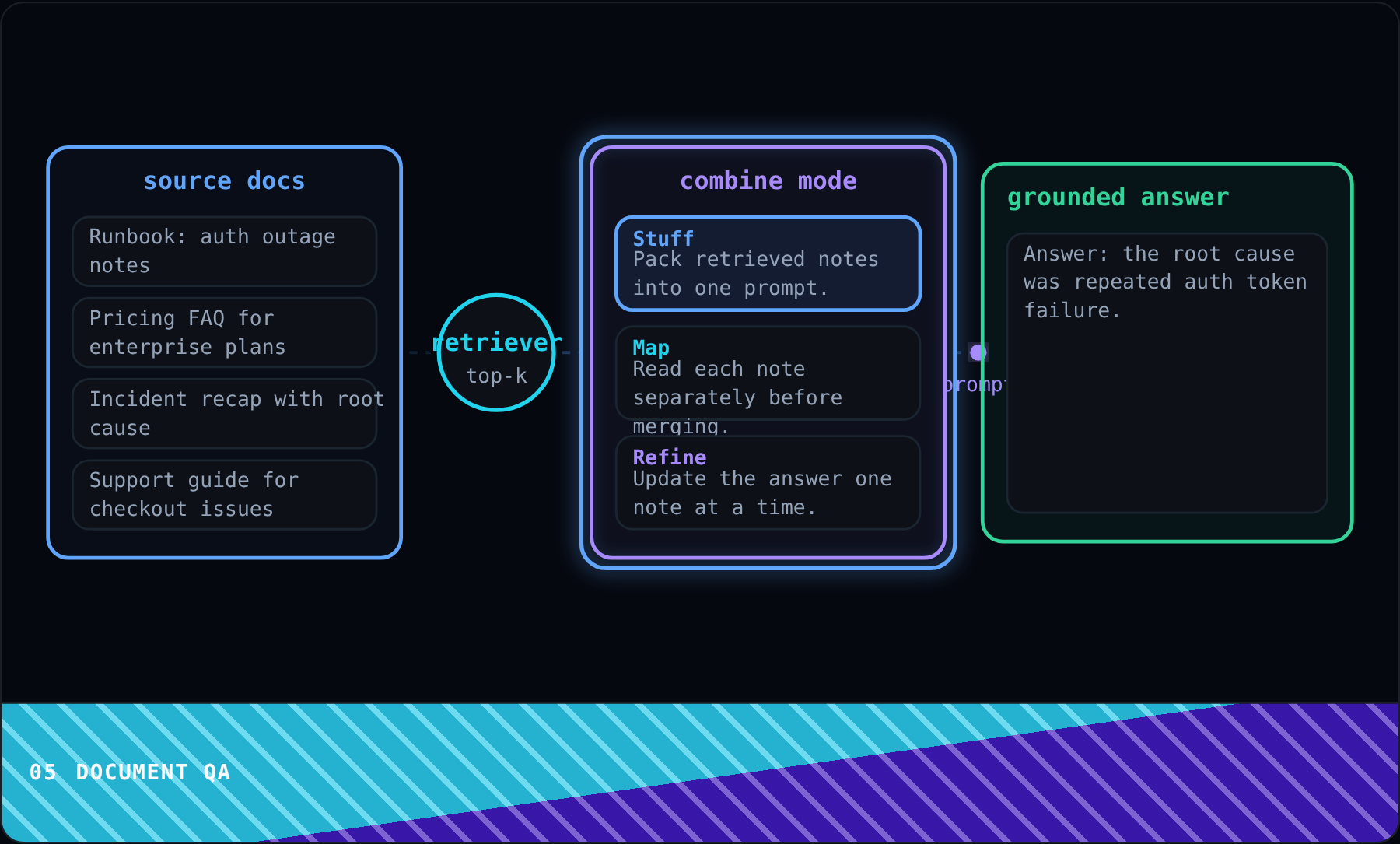

Retrieval Grounds the Answer
The model call now has a clean contract, but it still lacks the store policy. Retrieval starts by turning the question into a search representation and comparing it with indexed application documents.
An embedding model maps related meanings near one another, while a vector store can search those positions. A retriever is the interface that returns documents for the unstructured customer question.
The nearest documents can discuss shipping or warranties without answering the return question. If noisy matches enter the prompt, can the final decision honestly claim support from the policy?
The relevant returns document moves into the context and carries the sixty day Plus rule. Two step retrieval performs this search before generation, while agentic retrieval lets an agent decide when to search.
Switch the Match quality control between Noisy and Relevant. Watch which document reaches the context, then compare the downstream verdict to decide whether the answer is grounded or still needs review.
Retrieval does not guarantee truth, but it makes the evidence path explicit and testable. We now know the policy, yet the order details remain outside the prompt. Next the model will request a real lookup tool.

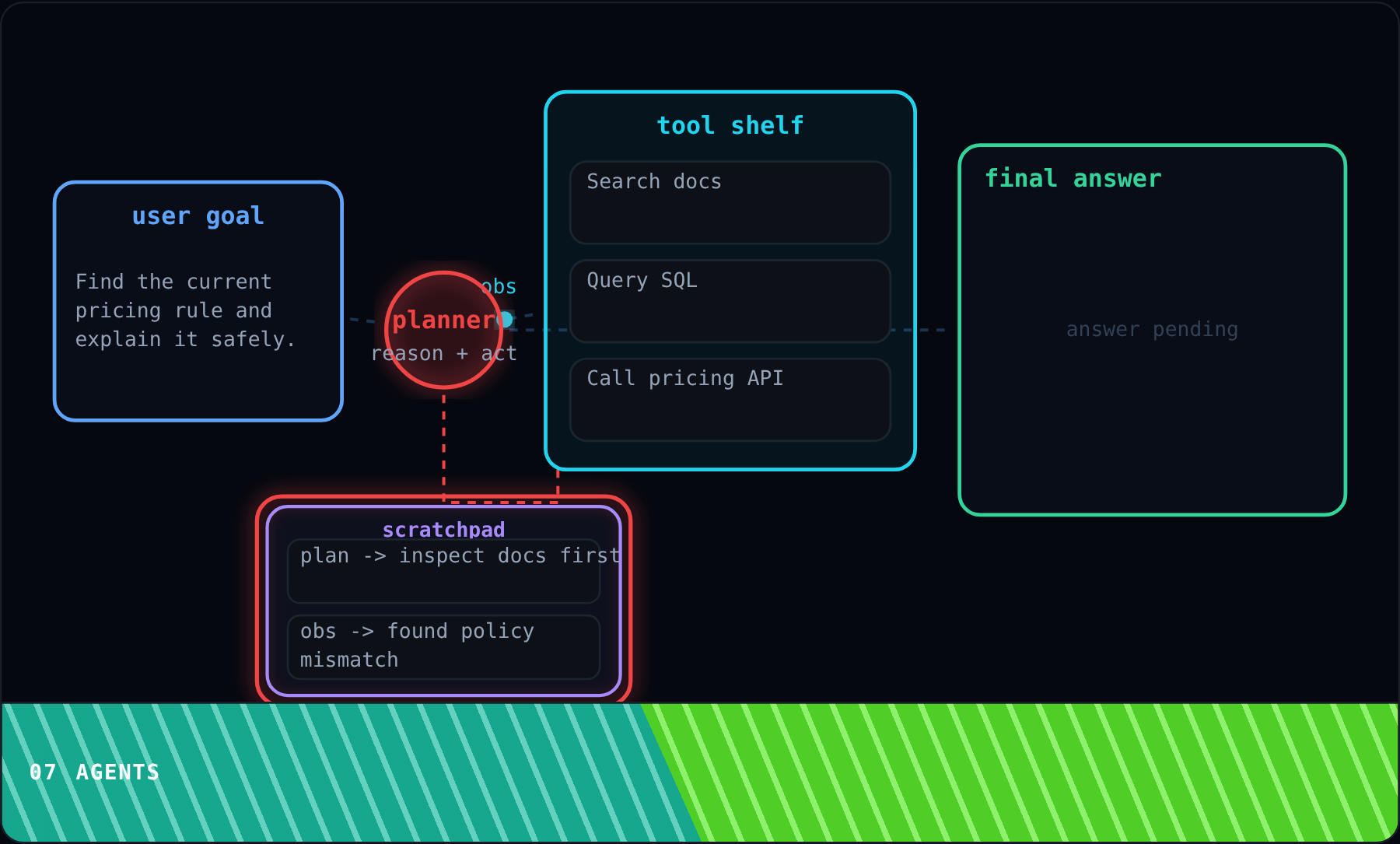

The Agent and Tool Loop
★ If you remember one thing · The model proposes a tool call, but application code executes it and returns the result before the model answers.
Retrieval supplied the return policy, but the customer also asks about a specific order. An agent gives the model access to a described lookup tool and lets it decide whether that function is needed.
The model emits a tool call containing the lookup name and order identifier. This message is a proposal, not execution. The model cannot reach the database merely by writing convincing arguments.
The request now sits at the trust boundary between generated data and application code. Who should validate the arguments, execute the order lookup, and own any real side effect?
Application code validates order A-104, executes the lookup, and sends the result back as a tool message. The outgoing request and returning result expose the central boundary in the agent loop.
The model can now combine policy evidence with the actual membership tier and delivery date. Current createAgent builds this loop on LangGraph, but the stable pattern remains model decision, tool execution, result, and stop.

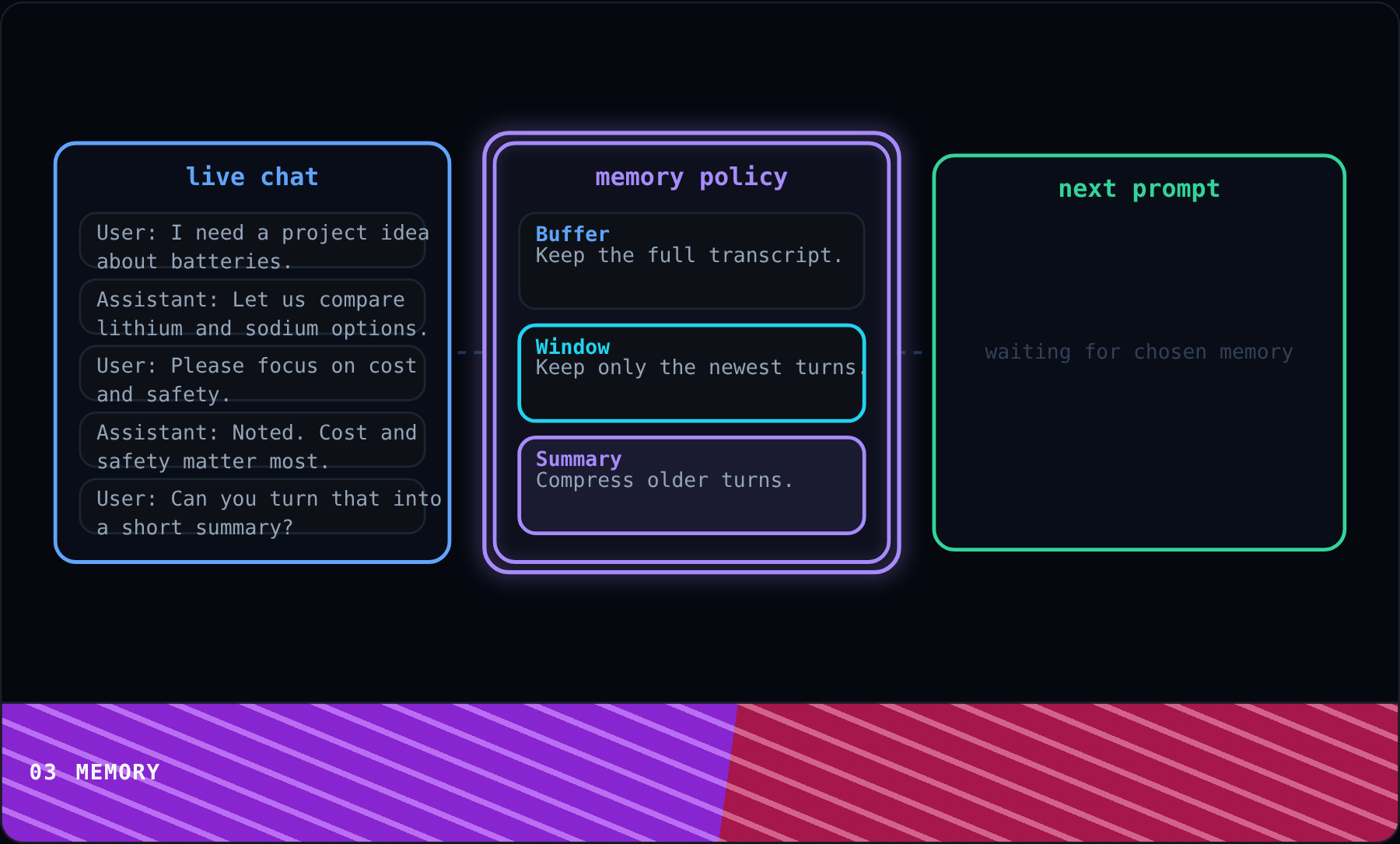

Thread Memory and State
The agent answered one request, but customers speak across several turns. Short-term memory stores messages and related agent state so the next invocation can resume the same conversation.
In current LangChain agents, a checkpointer saves that graph state. The caller supplies a thread ID, which selects the conversation record before each step and stores updates after invocations or tool calls.
The customer next asks only about the boots, without repeating order A-104. Another customer starts a repair conversation at the same time. Which identifier should recover the order without leaking it across conversations?
The second turn enters the original lane and reloads order A-104, while the repair request stays in its own lane. Continuity and isolation come from explicit persisted state, not from the model recognizing a person.
For production, LangChain recommends a database-backed checkpointer rather than an in-memory saver. Long-term memory serves facts shared across separate threads, while this stage only explains resumable thread state. Next we will operate the loop safely.
Guard, Trace, and Evaluate
Memory makes the agent continuous, but production adds risk and uncertainty. Middleware creates hooks around model and tool execution for logging, retries, rate limits, prompt changes, guardrails, and early termination.
A sensitive action such as sending a return label can pass through human approval middleware. The graph pauses before the tool, saves its state, and resumes with the reviewer decision on the same thread.
A final answer looks correct, yet operators still need to know which evidence and actions produced it. Which artifact should preserve the model call, tool result, approval, and output as one execution history?
The completed run becomes an inspectable trace with input, model, tool, approval, and output spans. LangChain agents support LangSmith tracing, while environment configuration and hosting choices remain operational details.

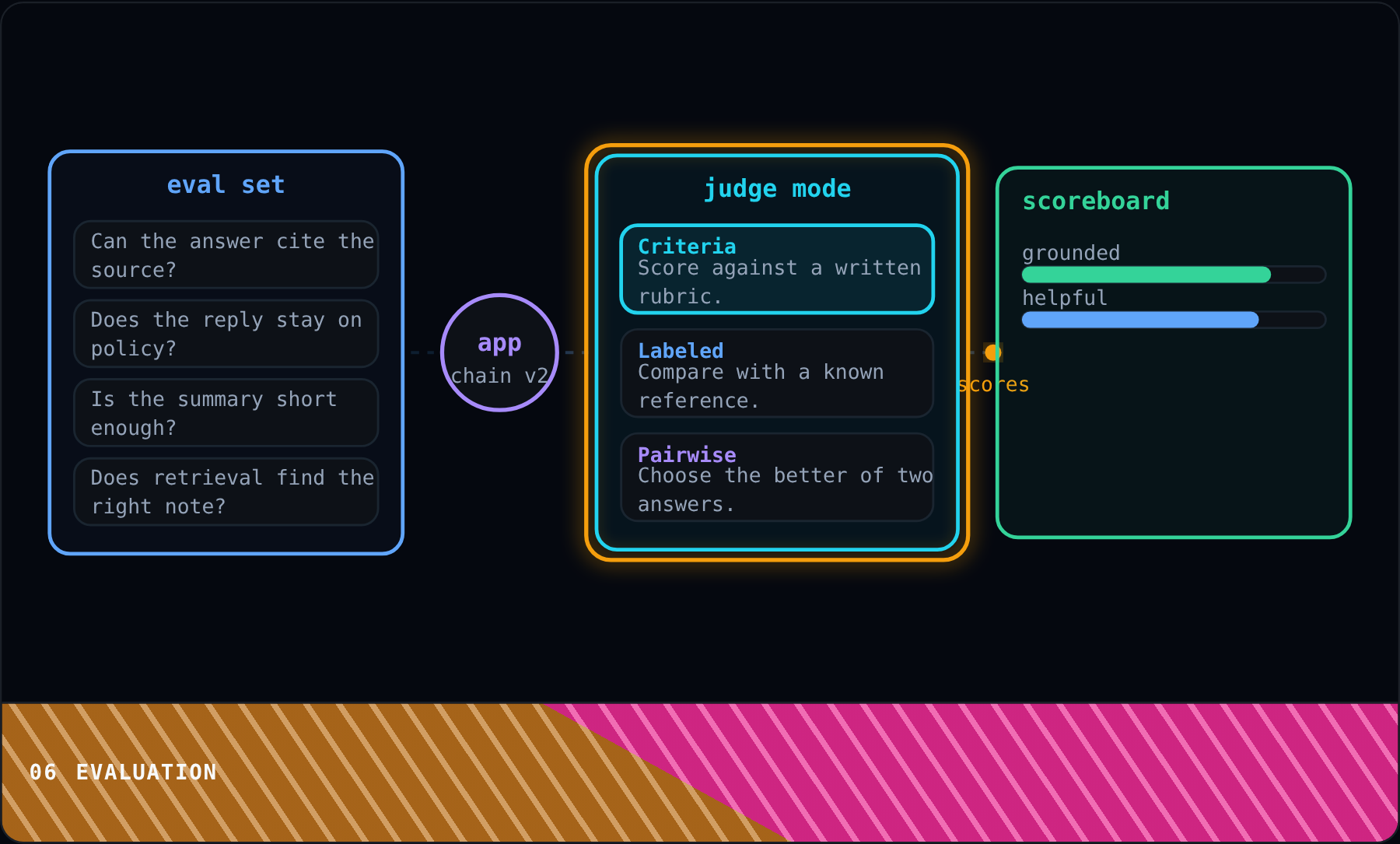

Traces explain individual runs, but evaluations compare behavior across examples. Offline evaluations use datasets and evaluators before release, while online evaluations score sampled production traffic and reveal new failure cases.
A production loop is therefore broader than the agent loop. Guardrails control what may happen, traces show what did happen, and evaluations measure whether changes improve behavior. Now let us reconnect the whole application.

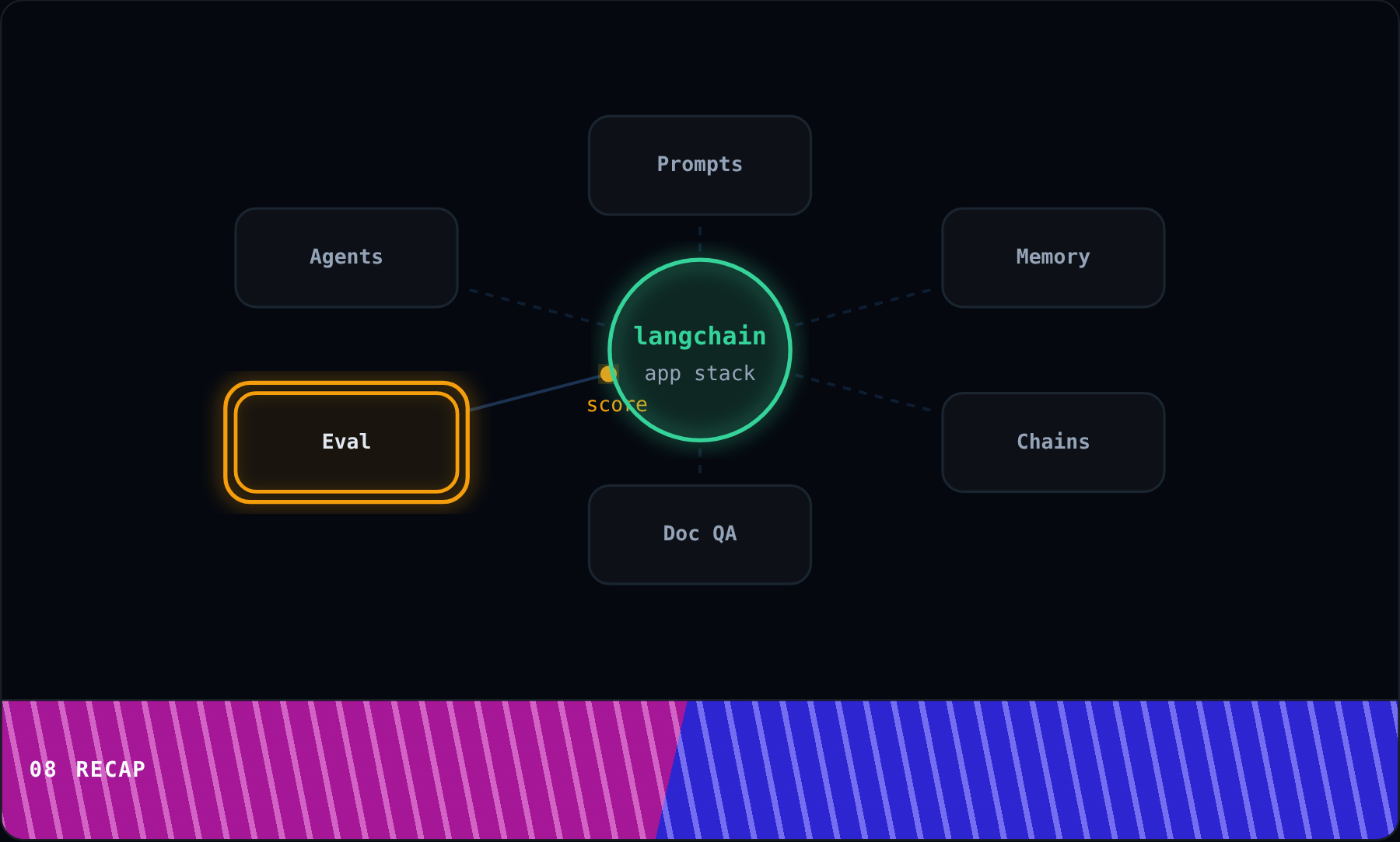

Recap
We started by wrapping the model call in role-tagged messages and a structured output schema. That contract makes both the input purpose and the returned data shape explicit.
Then retrieval supplied policy evidence from application knowledge. The retriever selected documents for the question, and only the relevant context could support the return decision.
The agent loop crossed the action boundary next. The model requested an order lookup, trusted code executed it, and the resulting tool message returned before the final answer.
Thread memory preserved the order across turns without mixing conversations. A checkpointer stored agent state, while the thread identifier selected the correct record for each invocation.
Finally, middleware controlled risky execution, traces recorded each run, and evaluations measured behavior across examples. Those layers turn surprising failures into evidence that teams can inspect and improve.
All five boundaries now surround the same customer request. LangChain becomes useful not by making the model magical, but by connecting generation to explicit context, actions, state, controls, and evidence.
The whole story in 5 lines
LangChain grows a model call into an application by surrounding generation with context, actions, state, controls, and evidence.
- Messages shape the request, while a schema turns probabilistic text into validated application data.
- Retrieval selects relevant documents and adds them to the context before the model writes its answer.
- An agent lets the model request tools, but trusted application code owns execution and returns results.
- A checkpointer stores thread state so one conversation can resume without leaking into another.
- Middleware controls risky actions, while traces and evaluations turn behavior into inspectable evidence.
