How Apache Cassandra gossip protocol works
See how Cassandra nodes discover peers, exchange versioned heartbeat state, spread cluster knowledge, and suspect failures.
The whole story in 4 lines
Cassandra gossip is a decentralized control plane where versioned state spreads peer to peer and each node judges reachability for itself.
- Seeds help a new node find the cluster, then become ordinary gossip peers.
- Generation and version numbers let nodes reject older state without comparing every field.
- Each peer shares what it knows, so a change spreads through repeated local exchanges.
- Heartbeats feed local failure detectors, so reachability judgments can briefly disagree.

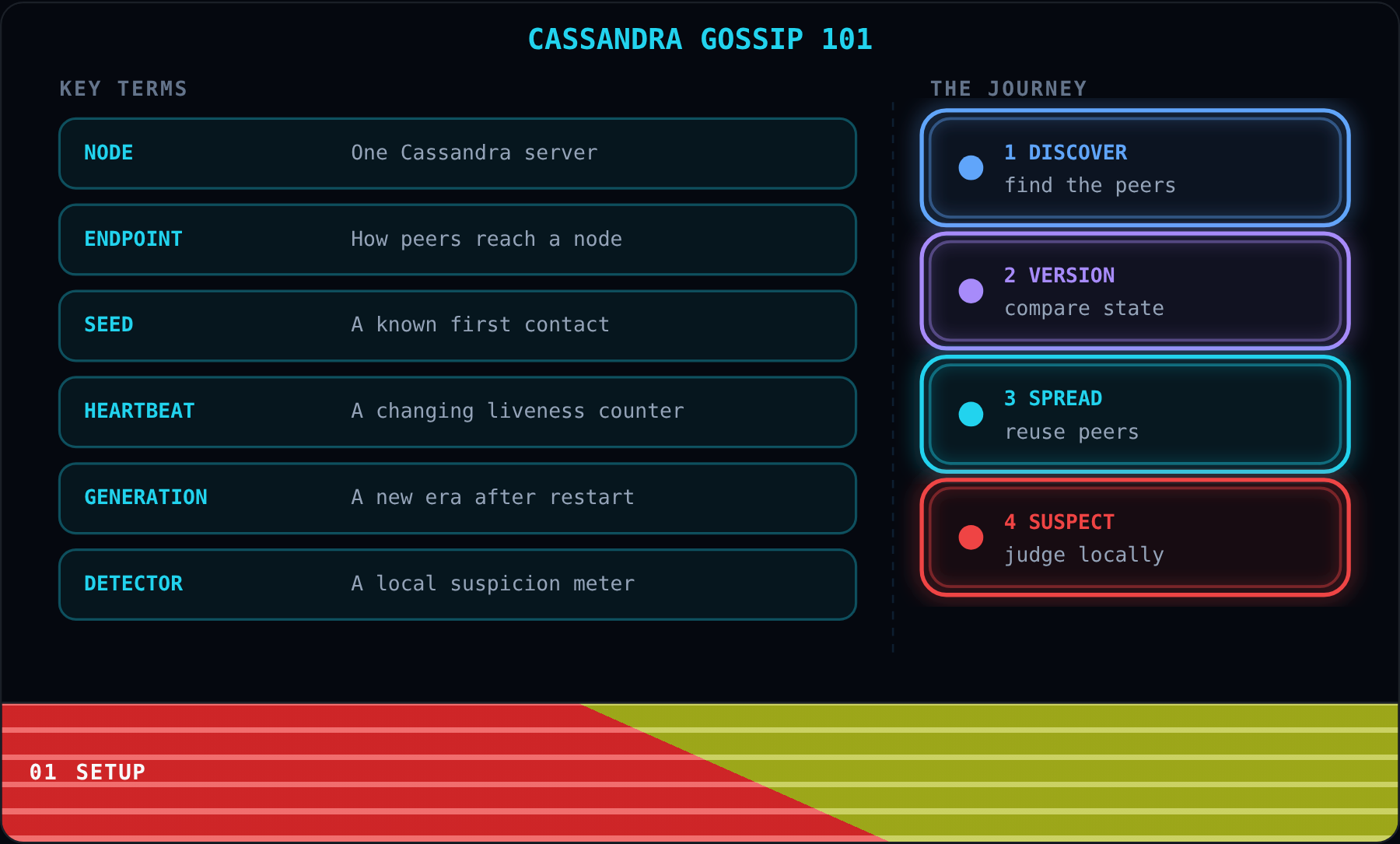

Setup
Think of Cassandra as one database spread across many computers. Gossip is their quiet background chat about which nodes exist and what each one reports.
A node is one Cassandra server, and its endpoint is the address peers use to reach it. A seed is simply a known first contact.
A heartbeat is a counter that changes while a node runs. Its generation identifies that run, so a restart begins a newer era.
Each failure detector studies when heartbeats arrive and forms its own suspicion. The cluster never holds one big vote to declare a peer down.
We will follow four steps: discover peers, compare versions, spread updates, and suspect failures, so let us start with how a new node finds the cluster.

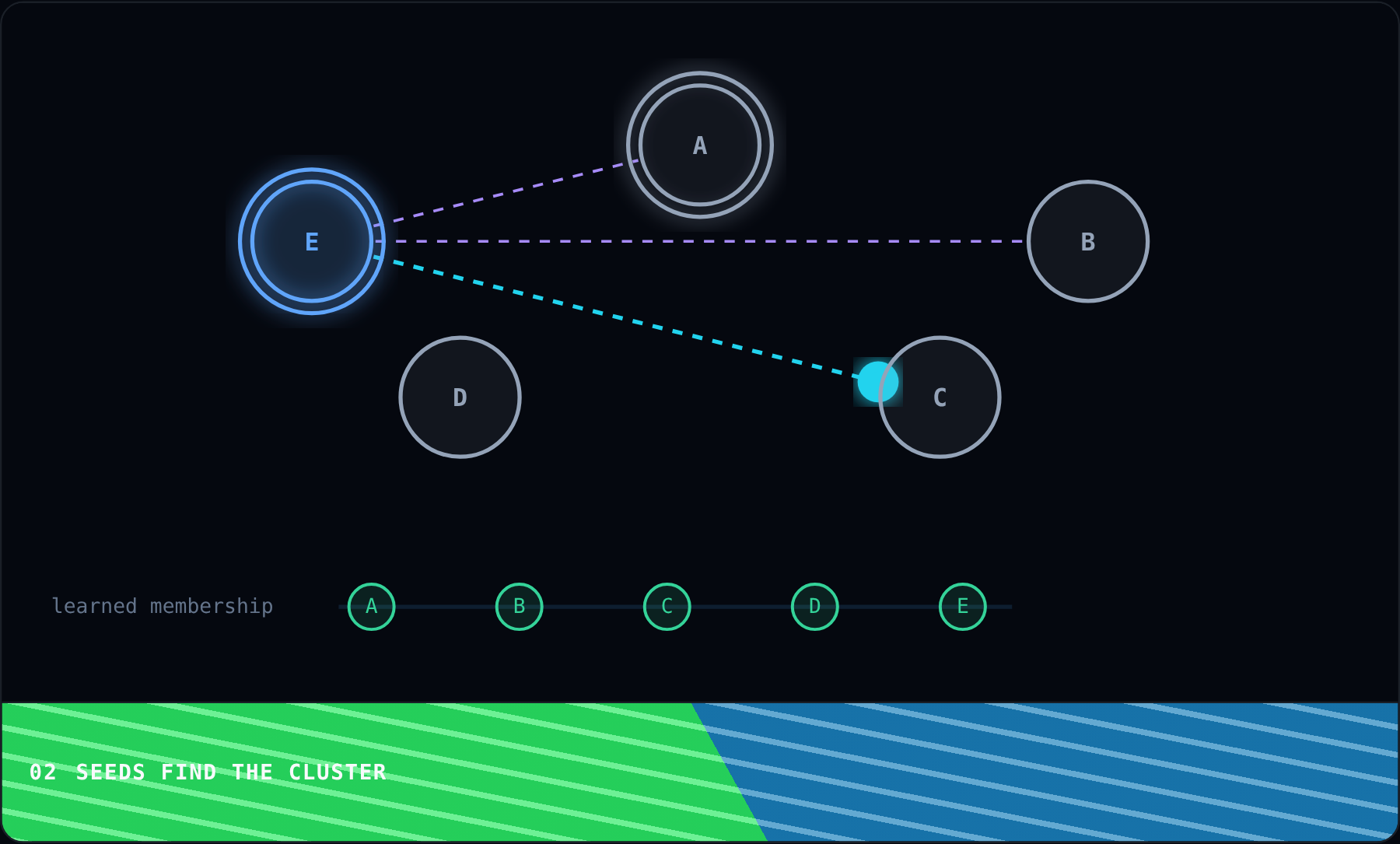

Seeds Find the Cluster
We begin with Node E outside the cluster. It knows configured seed addresses, but it does not yet know every Cassandra endpoint.
Node E contacts one reachable seed and asks for known endpoint state. That first conversation gives E a trustworthy entrance into the cluster.
The seed replies with the endpoints it already knows. A second configured seed offers another first-contact path if the preferred address cannot answer.
Node E can now build the full membership map from peer state. The seed helped it enter, but does that seed become the cluster boss?
The seed becomes an ordinary gossip peer once discovery finishes. Its temporary bootstrap role disappears while the peer topology keeps working without a leader.
Adjust the Seeds control from one to two. Compare a single contact path with the fallback that appears when another seed is configured.
Seeds solve only the first-contact problem, so they never coordinate later gossip. Next, we will inspect the versioned state that ordinary peers exchange.

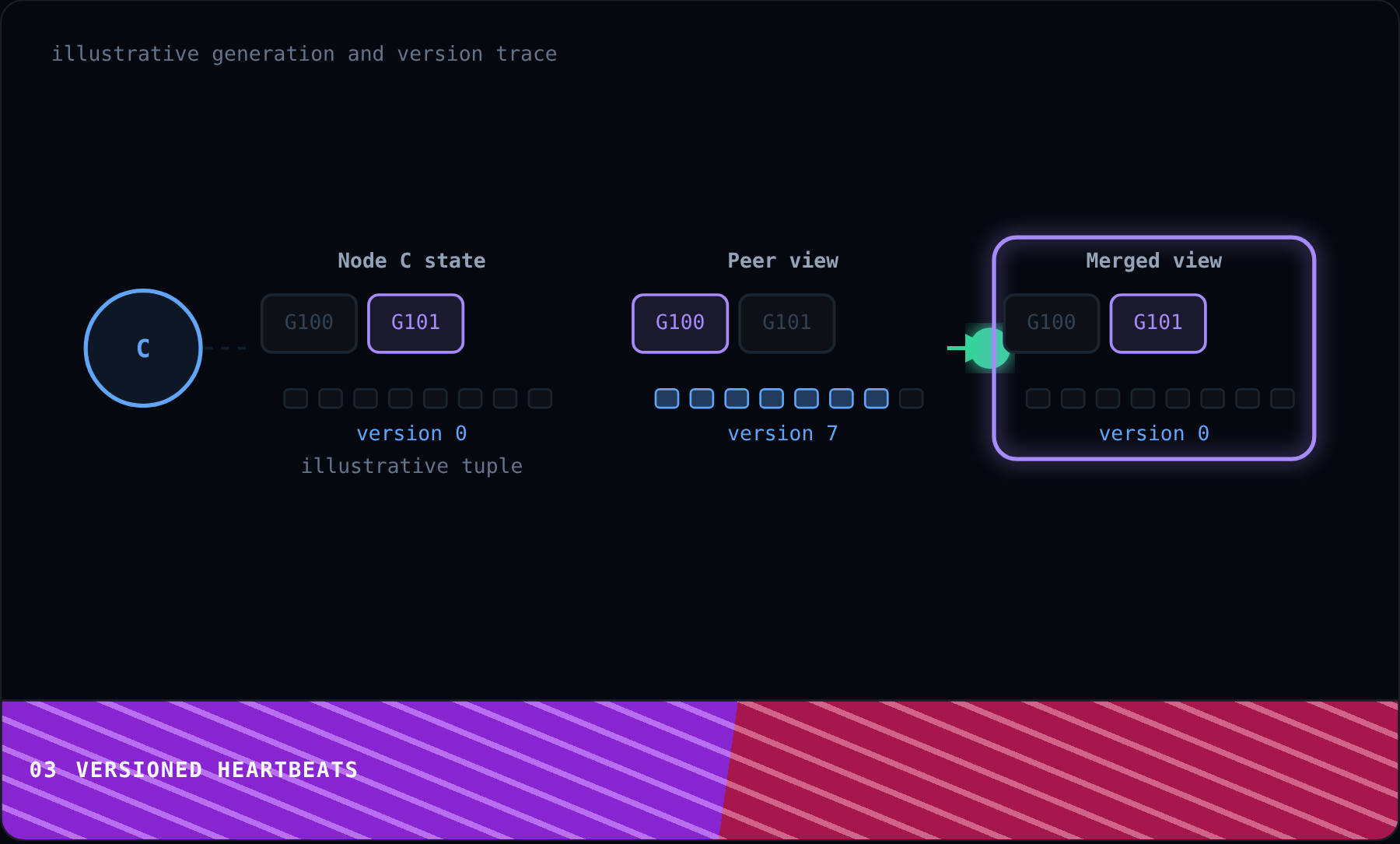

Versioned Heartbeats
Discovery gave every peer an endpoint map. Now we zoom into Node C and compare two copies of its versioned endpoint state.
While Node C keeps running, its heartbeat version increases about once per second. The generation stays fixed throughout that particular process run.
Peers summarize C with a generation and version pair. This compact ordering lets them compare freshness before inspecting every application-state field.
A normal tick advances only the version. A restart creates a newer generation and resets the smaller version counter for the new process run.
One peer holds an older pair while Node C reports a restarted pair. When these views meet, which endpoint state should survive the merge?
The higher generation wins even with version zero because it represents a newer run. Only matching generations use the higher version as the tie-breaker.
Switch the Lifecycle control between Running and Restart. Compare an advancing version within one run with a new generation that supersedes stale state.
This ordering rule makes peer merges cheap and predictable. Next, we will follow Node C's newer generation as ordinary peers spread it outward.
Rumor Spreads
★ If you remember one thing · Repeated peer exchanges spread one new state to every node without a central broadcaster.
Node C now holds the newer generation while every other node has the old view. Temporary disagreement is the starting point for gossip convergence.
Node C updates its own view first. It reports to no coordinator and sends no immediate broadcast to every endpoint in the cluster.
C gossips with B, and B keeps the newer generation after comparing tuples. B can now carry that same knowledge to another peer.
A busy round lets several informed nodes exchange with different peers at the same time. Those parallel branches increase the update's reach without central fanout.
Only one stale view remains after these local exchanges. Can another ordinary peer finish convergence without asking a central broadcaster for help?
The final exchange updates E and leaves all five views on generation 101. Repeated peer conversations have now achieved convergence without central fanout.
Switch the Peer activity control between Sparse and Busy. Compare the four-round path with the parallel pattern that converges in three rounds.
Each exchange can include knowledge about other endpoints, so convergence grows beyond one conversation. Next, we will separate shared heartbeat state from local failure judgments.

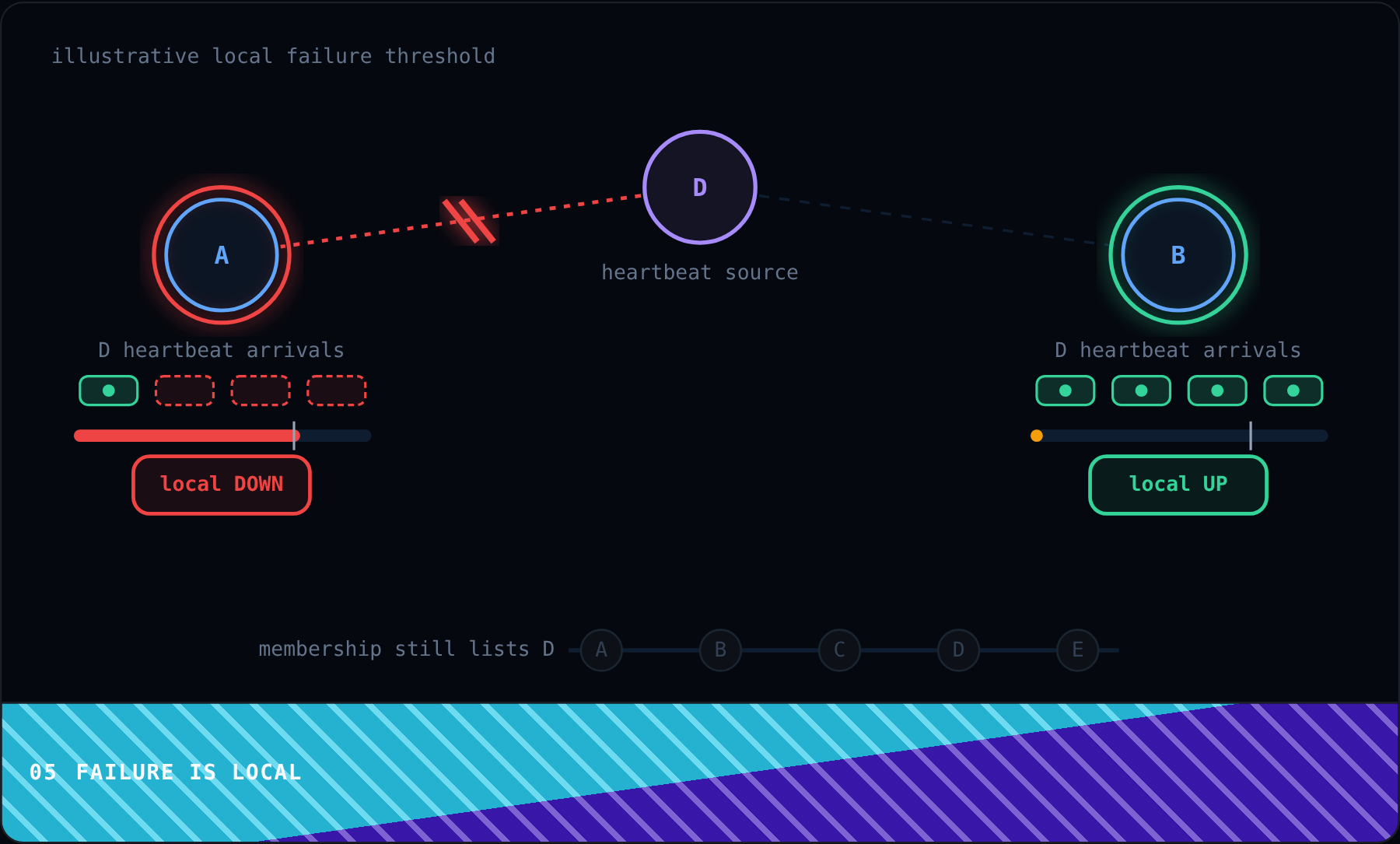

Failure Is Local
Gossip gave peers shared endpoint state, but reachability is a local judgment. Each observer feeds its own heartbeat arrivals into its own failure detector.
At first, both observers receive D's heartbeats on time. Their matching arrival histories give both detectors fresh evidence that D is healthy.
A network block removes D's heartbeats from Observer A while B keeps receiving them. The same endpoint now produces two different local evidence histories.
A becomes more suspicious as heartbeat slots remain empty. B still has fresh arrivals, so its detector stays below the illustrated suspicion threshold.
Only A crosses the illustrated suspicion threshold while B still receives D. Do they now gossip one final DOWN verdict for the whole cluster?
A marks D down while B still marks D up. Each observer decides reachability from local heartbeat evidence instead of accepting one cluster-wide verdict.
Switch the A to D link control between Blocked and Healthy. Compare local disagreement with the shared UP verdict after A receives heartbeats again.
D remains in the membership map during temporary failure suspicion, which avoids immediate topology churn. Now let us step back and connect the whole gossip system.

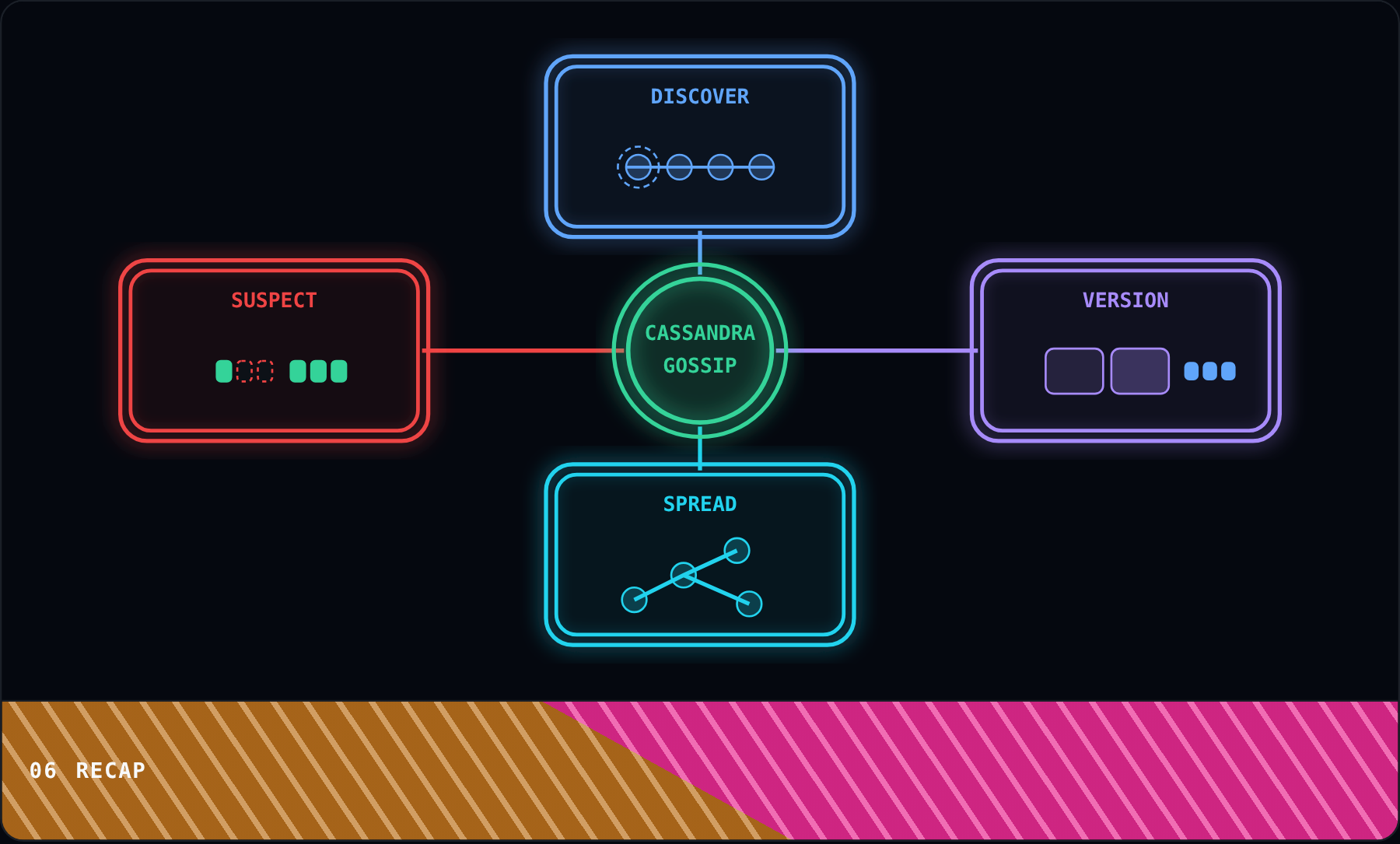

Recap
We started with discovery, where seeds gave a new node its first membership view. After that introduction, they returned to ordinary peer status.
Then we learned the version rule. Generation and version pairs make newer endpoint state easy to recognize and stale state easy to reject.
Next we followed the spread through ordinary peer conversations. Each informed node could carry the same update farther across the cluster.
Finally, we separated shared heartbeat state from local failure suspicion. Two observers may temporarily disagree because they receive different network evidence.
Put it together and Cassandra gossip combines discovery, versioned merging, peer spread, and local reachability decisions. The trace is illustrative, while the mechanics come from Cassandra documentation.
The whole story in 4 lines
Cassandra gossip is a decentralized control plane where versioned state spreads peer to peer and each node judges reachability for itself.
- Seeds help a new node find the cluster, then become ordinary gossip peers.
- Generation and version numbers let nodes reject older state without comparing every field.
- Each peer shares what it knows, so a change spreads through repeated local exchanges.
- Heartbeats feed local failure detectors, so reachability judgments can briefly disagree.
